Schematic view of a Newcomen steam engine, early 19th century

Wall Art and Photo Gifts from Heritage Images

Schematic view of a Newcomen steam engine, early 19th century

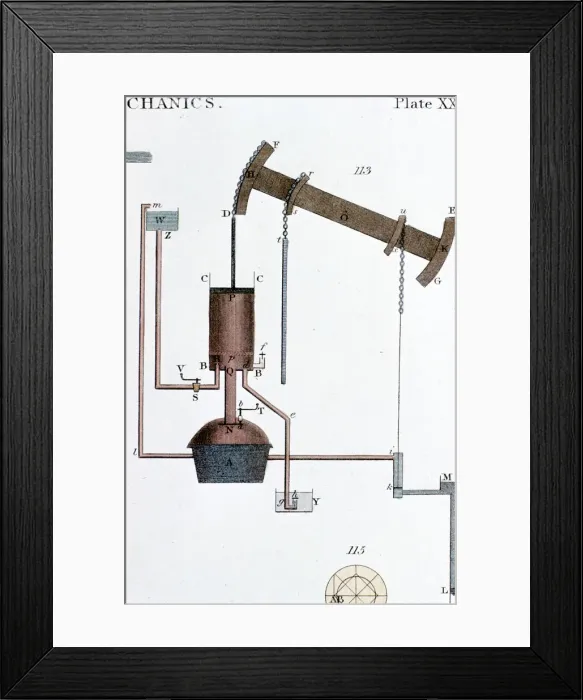

Schematic view of a Newcomen steam engine, early 19th century. Thomas Newcomen (1663-1729) designed his atmospheric or steam engine in 1712. Water was heated in the boiler and the resulting steam was let into the cylinder, pushing up the piston. The steam was then condensed, bringing down the piston. The piston rocked the beam which worked the pump. It was safer and more effective than the earlier Savery engine and was widely used to drain water out of mines

Media ID 14862843

© Oxford Science Archive / Heritage-Images

Beam Beam Engine Boiler Chimney Diagram Engine House Engineering Henry Industrial Revolution Invention Mining Newcomen Oxford Science Archive Power Pump Pumping Engine Schematic Steam Steam Engine Steam Power Technical Drawing Thomas Newcomen
