Cross section of the tube, &c. 1845. Creator: Unknown

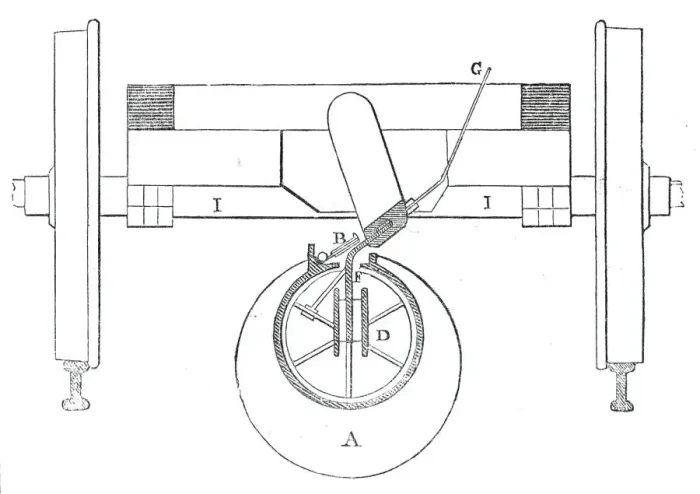

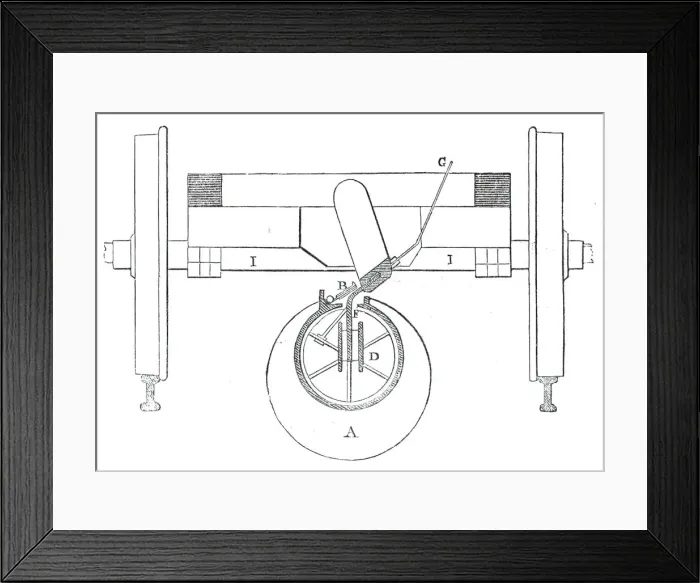

Cross section of the tube, &c. 1845. Diagram showing the workings of an atmospheric railway, a system using air pressure for locomotion, invented by Clegg and Samuda. To the leading carriage of every train a piston is attached by a bent plate; on the piston-rod are four wheels, two before and two behind the bent plate, so that when the piston is in the pipe, these wheels raise the valve, and prevent it from touching the bent plate. In this manner a communication is made between the piston in the pipe and the leading carriage. From " Illustrated London News", 1845, Vol VII
Media ID 20550044
© The Print Collector/Heritage Images
Clegg Innovation Jacob Piston Public Transport Railway Line Railway Track Railway Tracks Samuda Samuel Train Track Valve
