Evolution of the airfoil, 1908-1944. Creator: Unknown

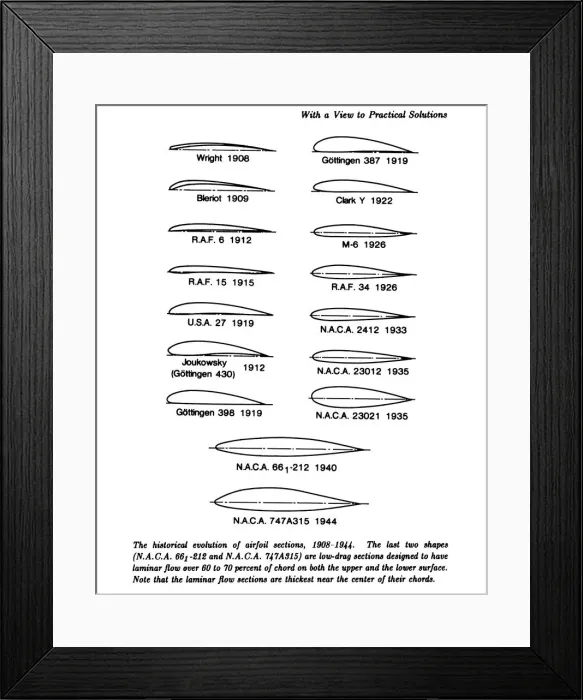

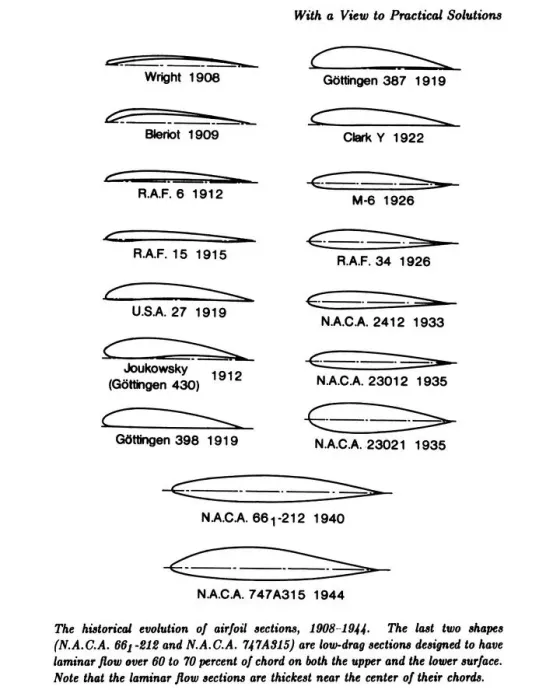

Evolution of the airfoil, 1908-1944. Diagrams showing the historical evolution of airfoil sections. The last two shapes are low-drag sections designed to have laminar flow over 60 to 70 percent of chord on both the upper and lower surface. Examples illustrated include designs by the Wright Brothers, the Aerodynamics Research Institute in Gottingen, Louis Bleriot, the Royal Air Force, and the National Advisory Committee for Aeronautics

Media ID 24045213

© Heritage Space/Heritage Images

Aerodynamic Aerodynamics Aeronautics Air Force Bl And Xe9 Diagram Drag Heritage Space Louis Bleriot Naca Nasa Research Research And Development Riot Royal Air Force Wing Wings Wright Brothers
